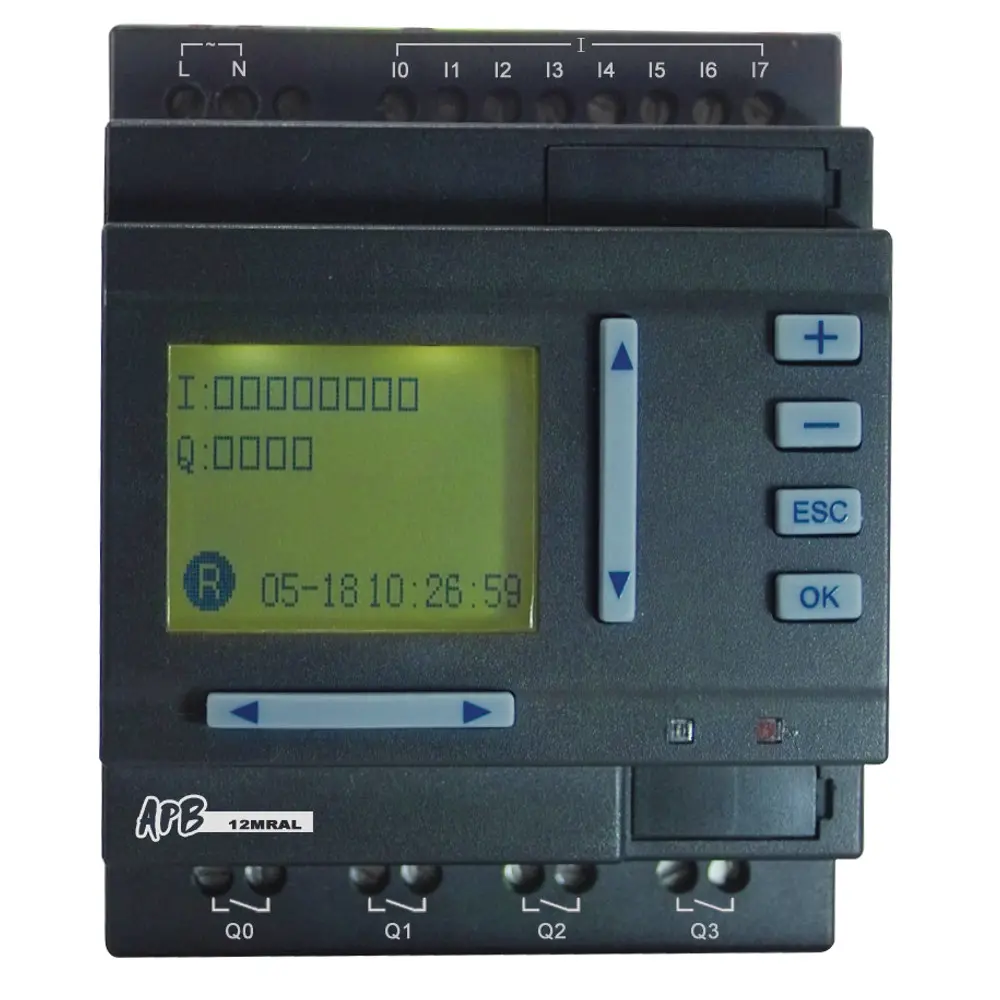

Array APB-12MRDL 12-24V DC Programmable Logic Controller

Power Supply

Digital Input

Digital Output

Analog Input

Features:

Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal max. configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;
It is allowed to place a Li-ion battery to power the clock;
Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA;
High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;
MODBUS protocol, and can be connected to SH-300 (Text Panel);
New function blocks: pulse width modulation (PWM), pulse

Technical Parameters

Surge Immunity: 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing): ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature: -10??+55?
Storage Temperature: -40??+70?
Ambient Humidity: 5%?95%RH
Degree of Protection: IP20(Non-waterproof)
Installation: Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm): 71*99*58.5(12 points)?126*99*58.5(22 points)?126*99*58.5(24 points)
Programming Language: FBD
Points: 12 points/22 points/24 points/can support 7 I/O extension modules
Memory Capacity: 320 FBDs
Filtering Duration of Input Signal: It can be set to improve the stability of signal
Real-time Clock: 160h,can place a Li-ion battery if it is necessary
Password Protection: Multiple passwords protection
High-speed Operation: At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz
Analog Operation: At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection: Yes
Simulate Monitoring: Yes
Communication Interface: TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate: 9600bps
Communication Protocol: MODBUS RTU
