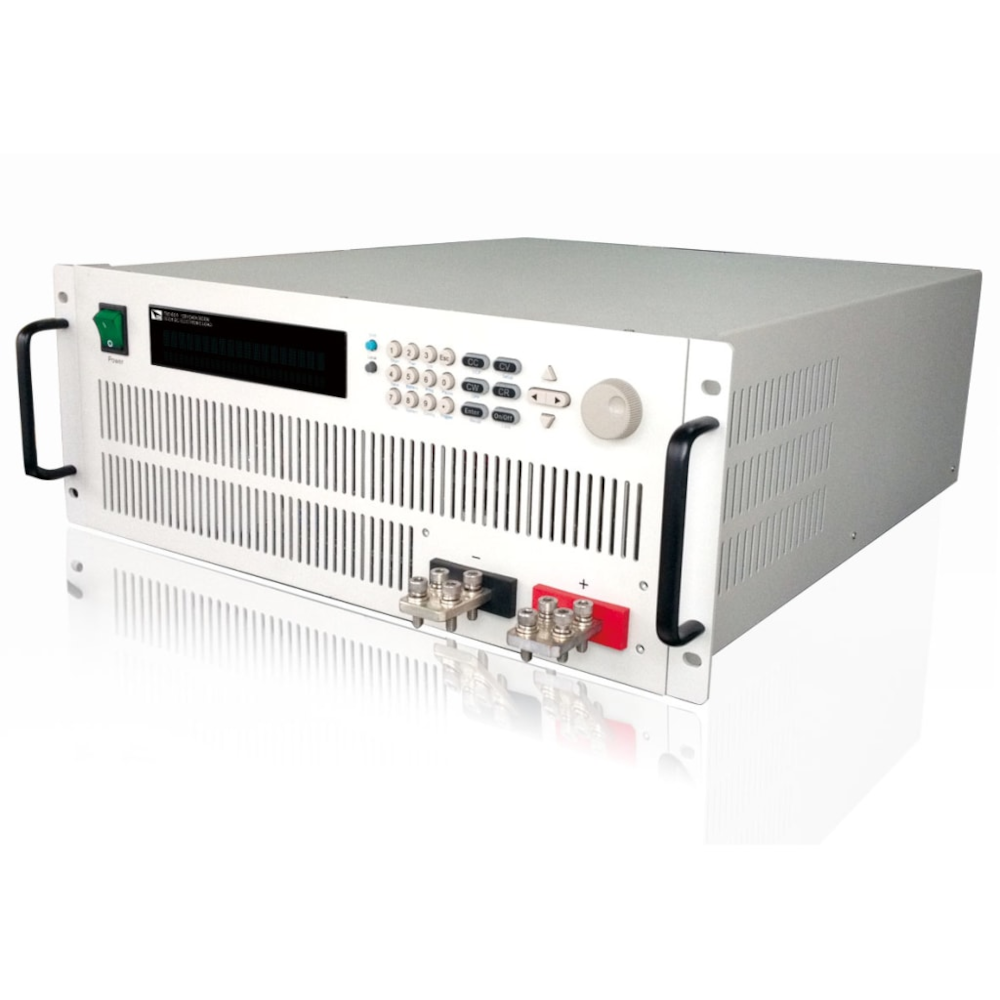

ITECH IT8516C+ 120V 240A Programmable DC Electronic Load

The ITECH IT8500+series (150W~3000W) single-channel programmable DC electronic loads are designed for middle & high-end applications. They can be offered as multiple solutions according to the customer's design and testing requirements. The user can perform online voltage measurements and adjustments or simulate short circuit tests using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries,DC-DC converters, and battery chargers, providing users with the best testing solution.

Model	Voltage	Current	Power	Resolution	Accuracy	Interface	Size
IT8516C+	120V	240A	3000W	0.1mV/1mA	±(0.025%+0.025%FS)/ ±(0.1%+0.1%FS)	RS232/USB/RS485	2U

Features:

Four operating modes: CV, CC, CR, CP
Battery test function, automatic test function, OPP test, OCP test function, and CR-LED function.
Dynamic mode up to 10KHz
Voltage measurement resolution up to 0.1mV / 0.1mA
Remote sense
Short circuit function
Current monitoring function
Power-off memory function
100 groups' memory capacity
Optional USB / RS232 / RS485 interface
* IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.

Functions and Advantages:

Dynamic test function

The dynamic test operation allows the electronic load to be switched between the two setting parameters according to the setting rules. This function is used to test the dynamic characteristics of the power supply.

Continuous mode: Under continuous mode, When the dynamic test operation is enabled, load will be continuously switched between the A value and the B value.

Pulse mode: Under pulse mode, when the dynamic test operation is enabled, each receives a trigger signal, and the load will switch to the B value, after maintaining the B pulse width time, switch back to the A value.

Toggle mode: In the trigger mode, when the dynamic test operation is enabled, each time a trigger signal is received, the load is switched between the A value and the B value.

Battery discharge test function

IT8500 + series electronic load can use constant current mode for a battery discharge test. After the discharge test mode is selected, the test mode termination condition "switch off voltage value", "switch off capacity value" and "discharge time" can be set. When any of the three conditions are satisfied, the discharge is stopped and the electronic load is automatically switched is OFF state. Users can observe the battery voltage, time, and battery discharge capacity during the test process.
