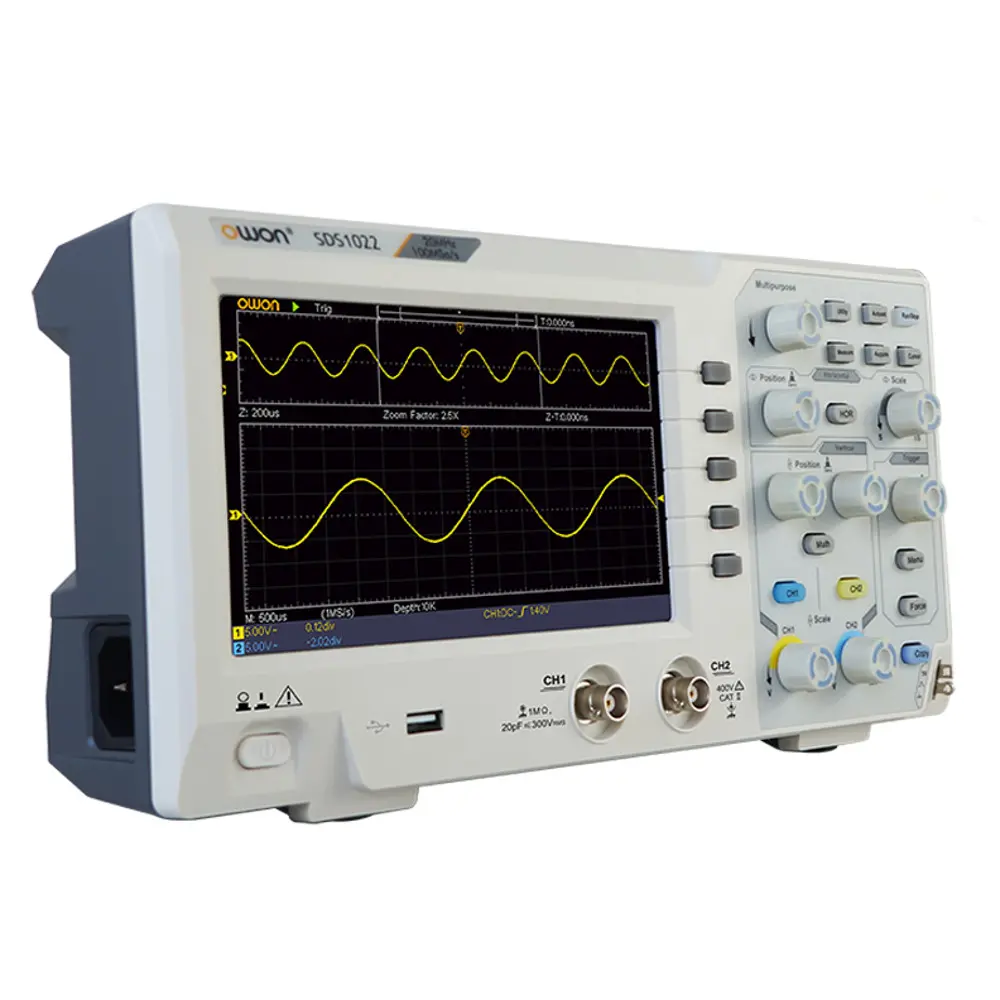

OWON SDS1022 20MHz 2Ch Oscilloscope


Front-Sided USB CI Design for easy access
Ultra-Thin device body, assures super portability Side mounted power socket

7’’ high resolution LCD brings more waveform detafulfilling better visual effect.

Friendly UI interaction Easy-accessible operation menu gets you to the result conveniently.

Windows extension The function facilitates the observation of abnormal signal from full waveform.

Snapshot One click, all measurement value comes from 30 auto-measurement options.

Size 301mm x 152mm x 70mm

Specifications:

Bandwidth		20MHz
Sample Rate		100MS/s
Horizontal Scale (s/div)		5ns/div - 1000s/div, step by 1 - 2 - 5
Channel		2
Display		7" color LCD, 800 x 480 pixels
Input Coupling		DC, AC , and GND
Vertical Resolution (A/D)		8 bits (2 channels simultaneously)
Vertical Sensitivity		5mV/div - 5V/div (at input)
Trigger Type		Edge, Video
Trigger Mode		Auto, Normal, and Single
Waveform Math		?, ?, x, ÷, invert, FFT
Fuse		2A, T class, 250V
Dimension (W x H x D)		301 x 152 x 70 mm
Device Weight		1.10 kg
